Cimarron 24in
Take it Off-Road
Explore new trails with the low-step, aluminum mountain frame, built for easy off-road excursions. The suspension fork soaks up bumps for an ever smoother ride.

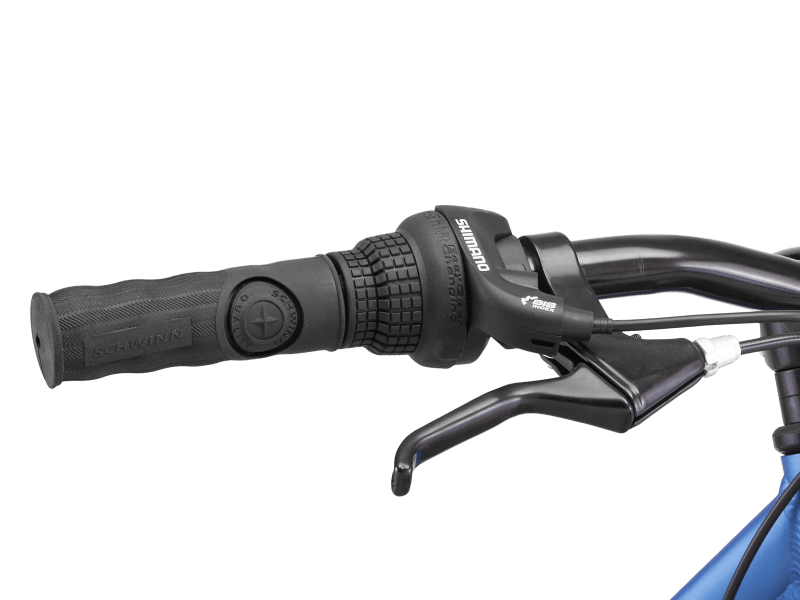

Shift into Gear
Choose from a wide range of possible gears with the 21-speed dual twist shifters.

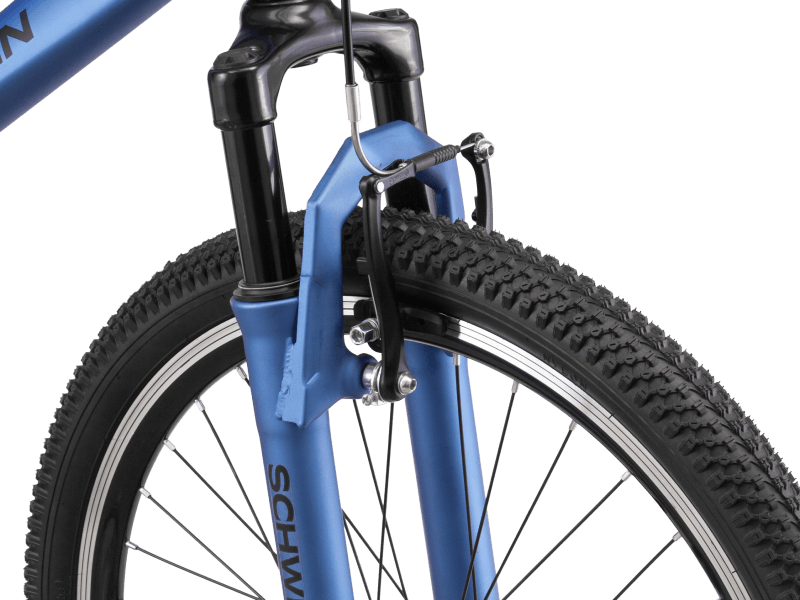

Stopping Power
Front and rear linear pull brakes provide reliable stopping power on the pavement or the trail.
Trail-Ready Traction
Durable rims with 1.95-inch-wide knobby mountain tires offer the grip and traction needed for rugged terrain.
Product Details
Technical Specifications
Frame
12" rigid aluminum mountain frame
Fork
24", steel steerer, 100 mm, QR axle
Crank
Prowheel, aluminum, 42/34/24T
Chain
KMC
Bottom Bracket
Loose ball bearing, square taper, 68 mm
Shifters
Microshift, 21-speed

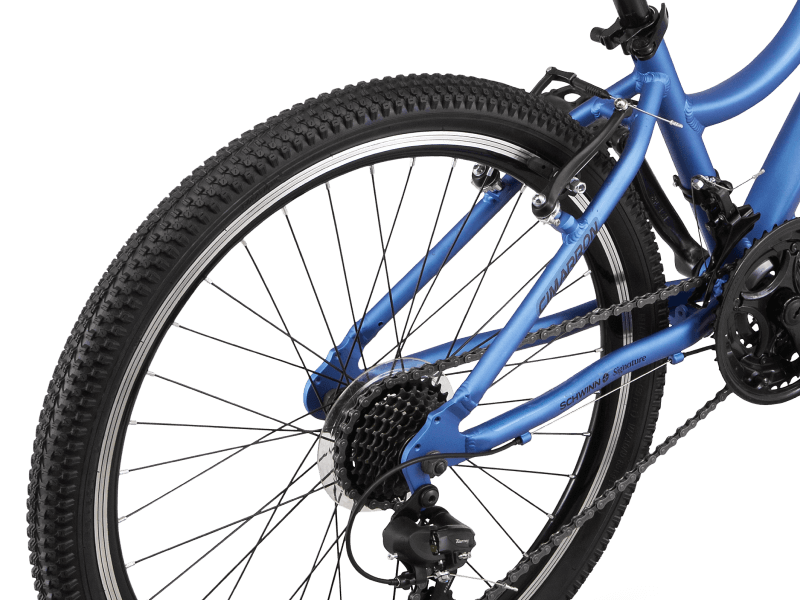

Rear Derailleur
Microshift
Rims
Aluminum, 36H, non tubeless
Rear Hub
Steel, ball bearing, 135 mm bolt-on, 36H
Spokes
14G, steel
Tires
20 in x 1.95 in, wire bead
Pedals
Resin platform w/ reflector
Brakes
Linear pull, aluminum
Handlebar
Steel, 620 mm width, 20 mm rise, 25.4 mm clamp
Stem
Aluminum, threadless, 60 mm, 7?, 25.4 mm clamp
Headset
Threadless, 1-1/8" external, ball bearing
Seat Post
Steel, 300 mm, 27.2 mm
Saddle
Schwinn, steel rails
Grips
Schwinn, Kraton
Sizes
Height: 26.77 in., Length: 49.21 in., Weight: 36.11 lb.
